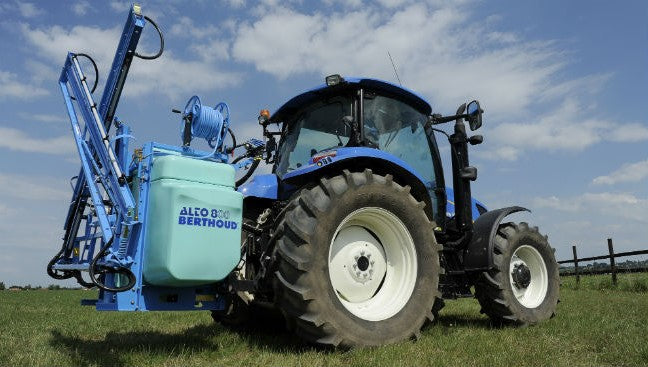

Alto & Alto Plus

Berthoud, Type_Mounted -

Alto & Alto Plus



STANDARD FEATURES
BASIC SPRAYERS
3 sections
XR T 12
(Booms not installed)
Designation RA 12 AST
3 sections
GC 9
Designation 2 sections 3 sections 3 sections
XR ST 12
(Booms not installed)
Without boom
■ Chassis :
- Chassis protected by UHR polyester paint.
■ Hitch - Drive :
- 3 Point hitch, Vineyard hitch on ALTO 300 and 400
Category 2 on ALTO 600 and 800
- PTO shaft drive.
■ Tanks :

- 300/400/600/800

- High density polyethylene tank with large fill opening.
- Rinse tank : 40 litres for Alto 300 and 400
and 80 litres for Alto 600 and 800
- Hand wash tank 15 litres.
■ Filling and Filtration :
- Filling filter (strainer mesh 8/10)
suction filter (mesh 6/10)
pressure filter (mesh 4/10)
■ Agitation :
- Hydraulic agitation by return of unsprayed liquid.
■ Pumps :
Version constant pressure :
- Piston diaphragm pump BP 60/20 (60l/mn, 20 bar)
Version Plus (DPM) :
- Piston diaphragm pump BP 105/20 (105l/mn, 20 bar)
■ Regulations
- Constant pressure
- Version Plus (DPM)
■ Distribution :
- Glycerin filled pressure gauge 0/25 bar ø 63 mm,
Constant pressure
- BERTHOUD manual control manifold including :
- Pressure regulator
- Main 1/4 turn valve
- 2 or 3 boom valves depending on boom
Version Plus (DPM)
- BERTHOUD manual control manifold including :
- Pressure regulator
- Main 1/4 turn valve
- 3 boom valves with calibrated returns
■ Nozzle holders :
- Version CP & Plus, ECO boom: StopGoutte
- Version CP booms TLP/GC : QuickJet
- Version Plus boom GC : QuickJet
- Version PC & Plus boom XR/RA : QuickJet
■ Nozzles :
- Boom ECO : 1 set nozzles RFX (tips).
- Other booms : 1 set nozzles Category 1.
