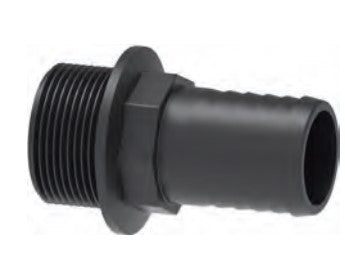

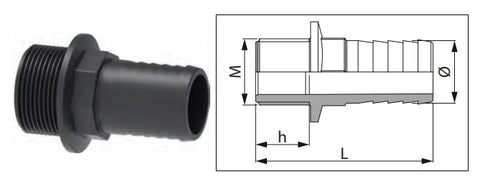

Straight hose fitting with male thread
| Code | D | L | M | h |
|---|---|---|---|---|
| 1032008 | 8mm | 47mm | G 1/4 | 13mm |
| 1032010 | 10mm | 52mm | G 1/4 | 13mm |
| 1032013 | 13mm | 52mm | G 1/4 | 13mm |
| 1032108 | 8mm | 52mm | G 3/8 | 16mm |
| 1032110 | 10mm | 57mm | G 3/8 | 16mm |
| 1032113 | 13mm | 57mm | G 3/8 | 16mm |
| 1032115 | 16mm | 57mm | G 3/8 | 16mm |
| 1032210 | 10mm | 60mm | G 1/2 | 18mm |
| 1032213 | 13mm | 60mm | G 1/2 | 18mm |
| 1032215 | 16mm | 60mm | G 1/2 | 18mm |
| 1032220 | 20mm | 65mm | G 1/2 | 18mm |
| 1032313 | 13mm | 66mm | G 3/4 | 22mm |
| 1032315 | 16mm | 66mm | G 3/4 | 22mm |
| 1032320 | 20mm | 71mm | G 3/4 | 22mm |
| 1032322 | 22mm | 71mm | G 3/4 | 22mm |
| 1032325 | 25mm | 71mm | G 3/4 | 22mm |
| 1032420 | 20mm | 72.5mm | G 1 | 22mm |
| 1032422 | 22mm | 72.5mm | G 1 | 22mm |
| 1032425 | 25mm | 72.5mm | G 1 | 22mm |
| 1032430 | 30mm | 77.5mm | G 1 | 22mm |
| 1032432 | 32mm | 77.5mm | G 1 | 22mm |
| 1032520 | 20mm | 75mm | G 1 1/4 | 24mm |
| 1032525 | 25mm | 75mm | G 1 1/4 | 24mm |
| 1032530 | 30mm | 80mm | G 1 1/4 | 24mm |
| 1032532 | 32mm | 80mm | G 1 1/4 | 24mm |
| 1032535 | 35mm | 85mm | G 1 1/4 | 24mm |
| 1032538 | 38mm | 85mm | G 1 1/4 | 24mm |
| 1032540 | 40mm | 90mm | G 1 1/4 | 24mm |
| 1032630 | 30mm | 80mm | G 1 1/2 | 24mm |
| 1032632 | 32mm | 80mm | G 1 1/2 | 24mm |
| 1032635 | 35mm | 85mm | G 1 1/2 | 24mm |
| 1032638 | 38mm | 85mm | G 1 1/2 | 24mm |
| 1032640 | 40mm | 90mm | G 1 1/2 | 24mm |
| 1032645 | 45mm | 90mm | G 1 1/2 | 24mm |
| 1032650 | 50mm | 95mm | G 1 1/2 | 24mm |
| 1032750 | 50mm | 101mm | G 2 | 27mm |
| 1032760 | 60mm | 112,5mm | G 2 | 27mm |
| 1032860 | 60mm | 120mm | G 2 1/2 | 32mm |
| 1032975 | 75mm | 138,5mm | G 3 | 35mm |
