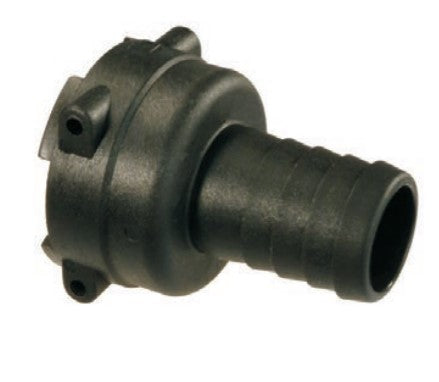

Straight Hosetail fitting with fork coupling - female connection
| HT Code | CODE Fork T | Fork Coupling (T) | L | Material | Ta | Tb | Tc | Ø | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 1090113 | 010001 | T1 | 45mm | 1.8" | PA | 13mm | 1/2" | |||
| 1090116 | 010001 | T1 | 45mm | 1.8" | PA | 16mm | 5/8" | |||
| 1090310 | 010003 | T3 | 48mm | 1.9" | PA | 10mm | 3/8" | |||
| 1090313 | 010003 | T3 | 48mm | 1.9" | PA | 13mm | 1/2" | |||
| 1090316 | 010003 | T3 | 48mm | 1.9" | PA | 16mm | 5/8" | |||
| 1090320 | 010003 | T3 | 53mm | 2.1" | PA | 20mm | 3/4" | |||
| 1090325 | 010003 | T3 | 53mm | 2.1" | PA | 25mm | 1" | |||
| 1090413 | 010004 | T4 | 49mm | 1.9" | PA | 13mm | 1/2" | |||
| 1090416 | 010004 | T4 | 49mm | 1.9" | PA | 16mm | 5/8" | |||
| 1090420 | 010004 | T4 | 54mm | 2.1" | PA | 20mm | 3/4" | |||
| 1090425 | 010004 | T4 | 54mm | 2.1" | PA | 25mm | 1" | |||
| 1090430 | 010004 | T4 | 59mm | PA | |
|
|
30mm | ||
| 1090513 | 010005 | T5 | 51mm | 2" | PA | 13mm | 1/2" | |||
| 1090516 | 010005 | T5 | 51mm | 2" | PA | 16mm | 5/8" | |||
| 1090520 | 010005 | T5 | 56mm | 2.2" | PA | 20mm | 3/4" | |||
| 1090525 | 010005 | T5 | 56mm | 2.2" | PA | 25mm | 1" | |||
| 1090530 | 010005 | T5 | 61mm | PA | |
|
|
30mm | ||
| 1090532 | 010005 | T5 | 61mm | 2.4" | PA | 32mm | 1 1/4" | |||
| 1090535 | 010005 | T5 | 63mm | PA | |
|
|
35mm | ||
| 1090538 | 010005 | T5 | 69mm | 2.7" | PA | 38mm | 1 1/2" | |||
| 1090540 | 010005 | T5 | 69mm | PA | |
|
|
40mm | ||
| 1090625 | 010006 | T6 | 60mm | 2.4" | PA | 25mm | 1" | |||
| 1090630 | 010006 | T6 | 65mm | PA | |
|
|
30mm | ||
| 1090632 | 010006 | T6 | 65mm | 2.6" | PA | 32mm | 1 1/4" | |||
| 1090635 | 010006 | T6 | 67mm | PA | |
|
|
35mm | ||
| 1090638 | 010006 | T6 | 73mm | 2.9" | PA | 38mm | 1 1/2" | |||
| 1090640 | 010006 | T6 | 73mm | PA | |
|
|
40mm | ||
| 1090650 | 010006 | T6 | 81mm | PA | |
|
|
50mm | ||
| 1090738 | 010007 | T7 | 77mm | 3" | PA | 38mm | 1 1/2" | |||
| 1090740 | 010007 | T7 | 80mm | PA | |
|
|
40mm | ||
| 1090745 | 010007 | T7 | 82mm | PA | |
|
|
45mm | ||
| 1090750 | 010007 | T7 | 84mm | PA | |
|
|
50mm | ||
| 1090752 | 010007 | T7 | 84mm | 3.3" | PA | 52mm | 2" | |||
| 1090760 | 010007 | T7 | 93.5mm | PA | |
|
|
60mm | ||
| 1090960 | 010009 | T9 | 103mm | PA | |
|
|
60mm | ||
| 1090975 | 010009 | T9 | 113mm | 4.4" | PA | 75mm | 3" | |||
