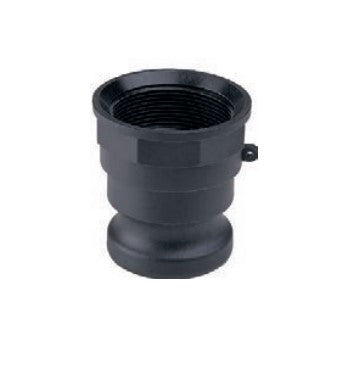

Coupling with Cam Locking - Male Adapter / Female Thread
TECHNICAL FEATURES
- Suitable to couplings MIL-C-27487
- STAINLESS STEEL locking levers for maximum mechanical strength and corrosion resistance (2 locking levers up to 3” models and 3 levers for 4” models)
- The material used, fibreglass-reinforced polypropylene, ensures excellent mechanical strength and good resistance against chemical agents
- On request, also available in fibreglass-reinforced Nylon
- BSP threads (NPT on request)
- A tapered seat for the O-ring seal is fitted in the female thread BSP versions (compatible with all new ARAG fittings)
- Max. working pressure 9 BAR (130 PSI) for the 3/4” to 2” models; max. 5 BAR (75 PSI) for the 3” and 4” models
- EPDM standard gaskets (Viton® and NBR on request)
