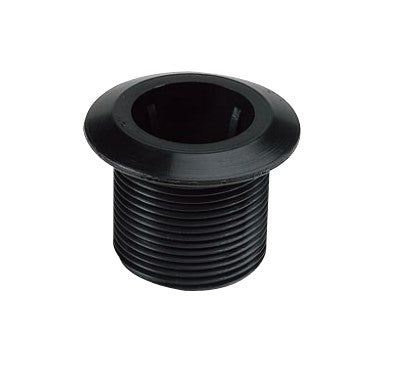

Drain / Tank Outlet

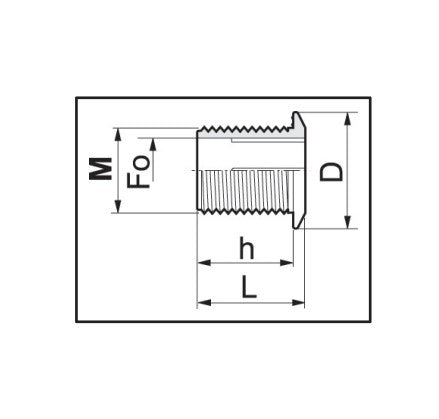

| CODE | D | F0 | L | M | h |
|---|---|---|---|---|---|
| 220020 | 38mm | 14mm | 48mm | G 1/2 | 43mm |
| 220030 | 45mm | 18mm | 50mm | G 3/4 | 34mm |
| 220040 | 50mm | 25mm | 55mm | G 1 | 50mm |
| 220050 | 58mm | 32mm | 45mm | G 1" 1/4 | 40mm |
| 220052 | 59mm | 32mm | 60mm | G 1 1/4 | 55mm |
| 220060 | 65.5mm | 38mm | 51.5mm | G 1 1/2 | 46mm |
|
220070 |
76mm | 47.5mm | 73.5mm | G 2 | 66.5mm |
| 220080 | 100mm | 63,5mm | 76mm | G 2 1/2 | 70mm |
