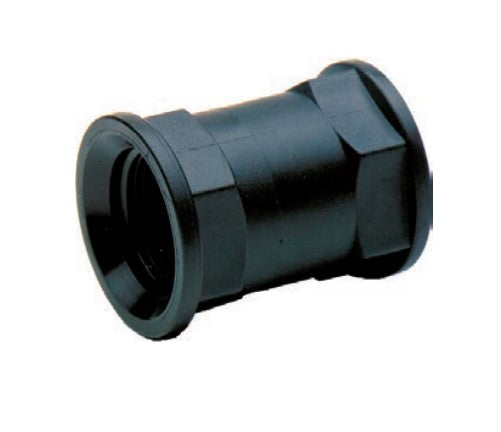

Female BSP thread fittings, with enhanced strength under pressure and OR sealing system.

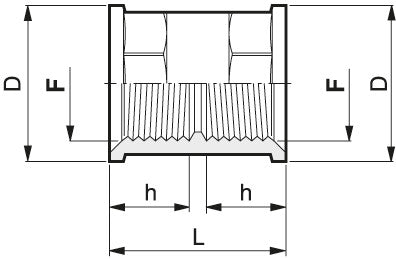

| CODE D | F | L | h | ||||
|---|---|---|---|---|---|---|---|
| 2302010 | 27mm | 1" | G 3/8 | 38mm | 1.5" | 17mm | 0.7" |
| 2302020 | 32mm | 1.2" | G 1/2 | 43mm | 1.7" | 19mm | 0.7" |
| 2302030 | 40mm | 1.6" | G 3/4 | 51mm | 2" | 23mm | 0.9" |
| 2302040 | 45mm | 1.8" | G 1 | 51mm | 2" | 23mm | 0.9" |
| 2302050 | 56mm | 2.2" | G 1 1/4 | 55mm | 2.1" | 25mm | 1" |
| 2302060 | 62mm | 2.4" | G 1 1/2 | 55mm | 2.1" | 25mm | 1" |
| 2302070 | 76mm | 3" | G 2 | 61mm | 2.4" | 28mm | 1.1" |
