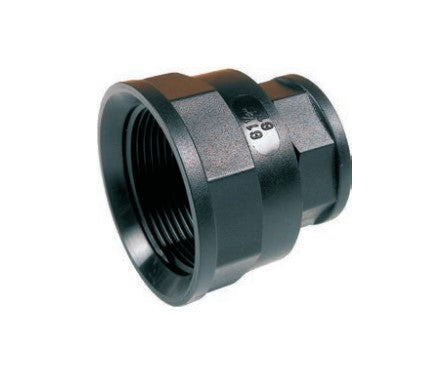

Female / Female reducer Nipple
Female BSP thread fittings with enhanced strength under pressure and OR sealing system.

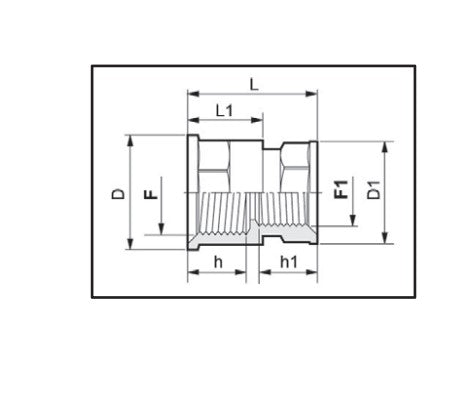

| CODE D | D1 | F | F1 | L | L1 | h | h1 | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2352010 | 27mm | 1" | 21mm | 0.8" | G 3/8 | G 1/4 | 35mm | 1.4" | 23mm | 0.9" | 18mm | 0.7" | 14mm | 0.5" |
| 2352020 | 32mm | 1.2" | 21mm | 0.8" | G 1/2 | G 1/4 | 37,5mm | 1.5" | 25,5mm | 1" | 19mm | 0.7" | 14mm | 0.5" |
| 2352021 | 32mm | 1.2" | 27mm | 1" | G 1/2 | G 3/8 | 40,5mm | 1.6" | 25,5mm | 1" | 19mm | 0.7" | 17mm | 0.6" |
| 2352031 | 40mm | 1.6" | 27mm | 1" | G 3/4 | G 3/8 | 44,5mm | 1.7" | 29,5mm | 1.2" | 23mm | 0.9" | 17mm | 0.6" |
| 2352032 | 40mm | 1.6" | 32mm | 1.2" | G 3/4 | G 1/2 | 47mm | 1.8" | 29,5mm | 1.2" | 23mm | 0.9" | 19mm | 0.7" |
| 2352042 | 45mm | 1.8" | 32mm | 1.2" | G 1 | G 1/2 | 47mm | 1.8" | 29,5mm | 1.2" | 23mm | 0.9" | 19mm | 0.7" |
| 2352043 | 45mm | 1.8" | 40mm | 1.6" | G 1 | G 3/4" | 51mm | 2" | 29,5mm | 1.2" | 23mm | 0.9" | 23mm | 0.9" |
| 2352053 | 56mm | 2.2" | 40mm | 1.6" | G 1 1/4 | G 3/4" | 53mm | 2" | 32mm | 1.3" | 25mm | 1" | 23mm | 0.9" |
| 2352054 | 56mm | 2.2" | 45mm | 1.8" | G 1" 1/4 | G 1" | 53mm | 2" | 32mm | 1.3" | 25mm | 1" | 23mm | 0.9" |
| 2352064 | 62mm | 2.4" | 45mm | 1.8" | G 1" 1/2 | G 1" | 53mm | 2" | 32mm | 1.3" | 25mm | 1" | 23mm | 0.9" |
| 2352065 | 62mm | 2.4" | 56mm | 2.2" | G 1" 1/2 | G 1" 1/4 | 55mm | 2.1" | 32mm | 1.3" | 25mm | 1" | 25mm | 1" |
| 2352075 | 76mm | 3" | 56mm | 2.2" | G 2" | G 1" 1/4 | 58mm | 2.2" | 35mm | 1.4" | 28mm | 1.1" | 25mm | 1" |
| 2352076 | 76mm | 3" | 62mm | 2.4" | G 2" | G 1" 1/2 | 58mm | 2.2" | 35mm | 1.4" | 28mm | 1.1" | 25mm | 1" |
