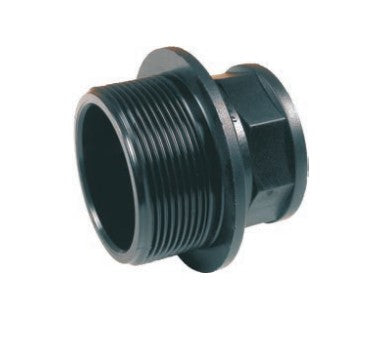

Male/female reducer nipple
Male and Female BSP thread fittings, with enhanced strength under pressure and OR sealing system.

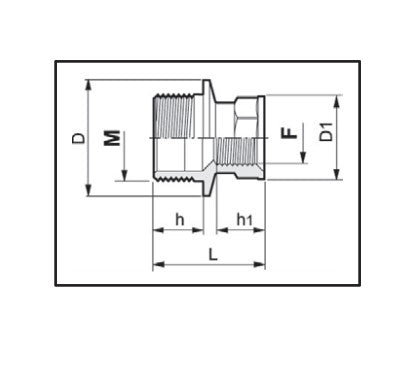

| CODE | D | D1 | F | L | M | h | h1 |
|---|---|---|---|---|---|---|---|
| 245010 | 22mm | 22mm | G 1/4 | 23mm | G 3/8 | 13mm | 10mm |
| 2452032 | 40mm | 32mm | G 1/2 | 47,5mm | G 3/4 | 22mm | 19mm |
| 2452042 | 45mm | 32mm | G 1/2 | 47,5mm | G 1 | 22mm | 19mm |
| 2452043 | 45mm | 40mm | G 3/4 | 51,5mm | G 1 | 22mm | 23mm |
| 2452053 | 56mm | 40mm | G 3/4 | 53,5mm | G 1 1/4 | 24mm | 23mm |
| 2452054 | 56mm | 45mm | G 1 | 53,5mm | G 1 1/4 | 24mm | 23mm |
| 2452064 | 62mm | 45mm | G 1 | 53,5mm | G 1 1/2 | 24mm | 23mm |
| 2452065 | 62mm | 56mm | G 1 1/4 | 56mm | G 1 1/2 | 24mm | 25mm |
| 2452075 | 76mm | 56mm | G 1" 1/4 | 59mm | G 2" | 27mm | 25mm |
| 2452076 | 76mm | 62mm | G 2" | 59mm | G 2" | 27mm | 25mm |
| 2452097 | 106mm | 76mm | G 2" | 72,5mm | G 3" | 35mm | 28mm |
