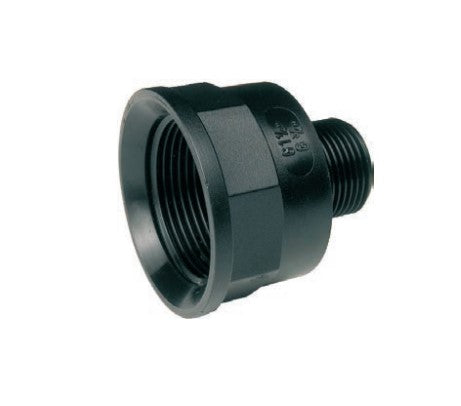

Female / Male reducer nipple
Male and Female BSP thread fittings, with enhanced strength under pressure and OR sealing system.

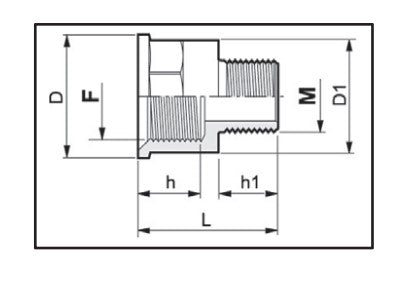

| CODE | D | D1 | F | L | M | h | h1 |
|---|---|---|---|---|---|---|---|
| 2452001 | 27mm | 22mm | G 3/8 | 36mm | G 1/4 | 17 | 11mm |
| 2452002 | 32mm | 21mm | G 1/2 | 38,5mm | G 1/4 | 19 | 13mm |
| 2452012 | 32mm | 27mm | G 1/2 | 41,5mm | G 3/8 | 19 | 16mm |
| 2452013 | 40mm | 27mm | G 3/4 | 45,5mm | G 3/8 | 23 | 16mm |
| 2452023 | 40mm | 32mm | G 3/4 | 47,5mm | G 1/2 | 23 | 18mm |
| 2452024 | 45mm | 32mm | G 1 | 47,5mm | G 1/2 | 23 | 18mm |
| 2452034 | 45mm | 40mm | G 1 | 51,5mm | G 3/4 | 23 | 22mm |
| 2452035 | 56mm | 40mm | G 1" 1/4 | 54mm | G 3/4 | 25 | 22mm |
| 2452045 | 56mm | 45mm | G 1" 1/4 | 54mm | G 1" | 25 | 22mm |
| 2452046 | 62mm | 45mm | G 1" 1/2 | 54mm | G 1" | 25 | 22mm |
| 2452056 | 62mm | 56mm | G 1" 1/2 | 56mm | G 1" 1/4 | 25 | 24mm |
| 2452057 | 76mm | 56mm | G 2" | 59mm | G 1" 1/4 | 28 | 24mm |
| 2452067 | 76mm | 62mm | G 2" | 59mm | G 1" 1/2 | 28 | 24mm |
| 2452079 | 106mm | 106mm | G 3" | 60mm | G 2" | 25 | 25mm |
