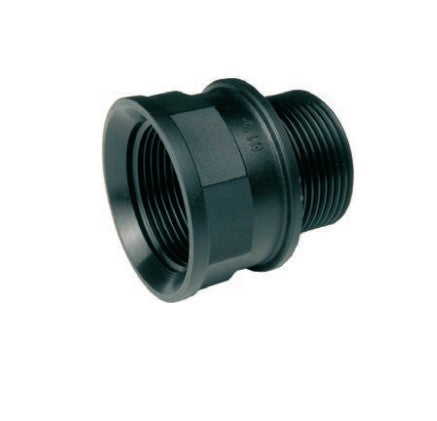

Male / Female threaded coupling
Male and Female BSP thread fittings, with enhanced strength under pressure and OR sealing system.

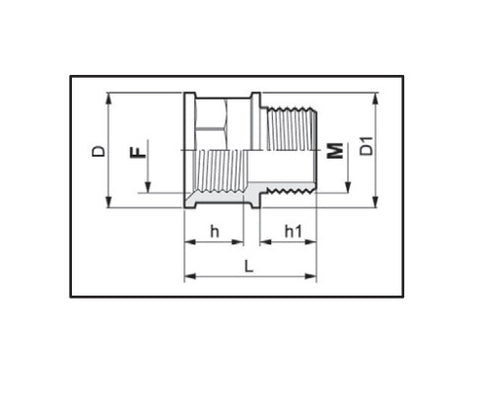

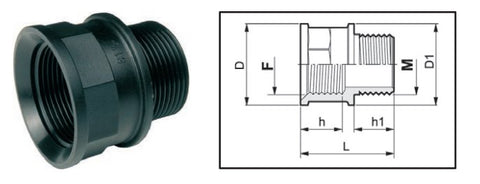

| CODE | D | D1 | F | L | M | h | h1 |
|---|---|---|---|---|---|---|---|
| 32mm | 32mm | G 1/2 | 43,5mm | G 1/2 | 19mm | 18mm | |
| 40mm | 40mm | G 3/4 | 51,5mm | G 3/4 | 23mm | 22mm | |
| 45mm | 45mm | G 1 | 51,5mm | G 1 | 23mm | 22mm | |
| 56mm | 56mm | G 1 1/4 | 56mm | G 11/4 | 25mm | 24mm | |
| 62mm | 62mm | G 1 1/2 | 56mm | G 11/2 | 25mm | 24mm | |
| 76mm | 76mm | G 2 | 62mm | G 2 | 28mm | 27mm |
