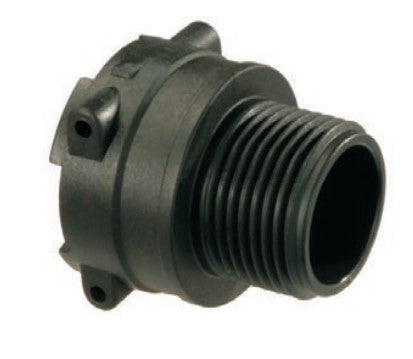

Hosetail Fitting with Fork Coupling - Male Thread BSP with Female Connection
| CODE | CODE Fork T | F | Fork Coupling (T) | L | Material | h | ||
|---|---|---|---|---|---|---|---|---|
| 249032 | 010003 | G 1/2" M | T3 | 36mm | 1.4" | PA | 18mm | 0.7" |
| 249033 | 010003 | G 3/4" M | T3 | 40mm | 1.6" | PA | 22mm | 0.8" |
| 249042 | 010004 | G 1/2" M | T4 | 37mm | 1.4" | PA | 18mm | 0.7" |
| 249044 | 010004 | G 1" M | T4 | 41mm | 1.6" | PA | 22mm | 0.8" |
| 249055 | 010005 | G 1" 1/4 M | T5 | 46mm | 1.8" | PA | 24mm | 0.9" |
| 249064 | 010006 | G 1" M | T6 | 46mm | 1.8" | PA | 22mm | 0.8" |
| 249065 | 010006 | G 1" 1/4 M | T6 | 48mm | 1.9" | PA | 24mm | 0.9" |
| 249066 | 010006 | G 1" 1/2 M | T6 | 49mm | 1.9" | PA | 24mm | 0.9" |
| 249067 | 010006 | G 2" M | T6 | 47mm | 1.8" | PA | 27mm | 1" |
| 249074 | 010007 | G 1" M | T7 | 51mm | 2" | PA | 22mm | 0.8" |
| 249075 | 010007 | G 1" 1/4 M | T7 | 53mm | 2" | PA | 24mm | 0.9" |
| 249076 | 010007 | G 1" 1/2 M | T7 | 53mm | 2" | PA | 24mm | 0.9" |
| 249077 | 010007 | G 2" M | T7 | 59mm | 2" | PA | 27mm | 1" |
| 249099 | 010009 | G 3" M | T9 | 73mm | 2.9" | PA | 35mm | 1.4" |
