Suction filters threads coupling - Spares

GENERAL FEATURES
  • 3” BSP threads
  • Filtering capacity 400-800 l/min
  • Cartridge Ø 145 x 320 mm
  • Polypropylene body
  • EPDM gaskets (VITON® optional)
  • Brass fixing inserts
  • G1 drain thread (punctured to open) to install on drain valve

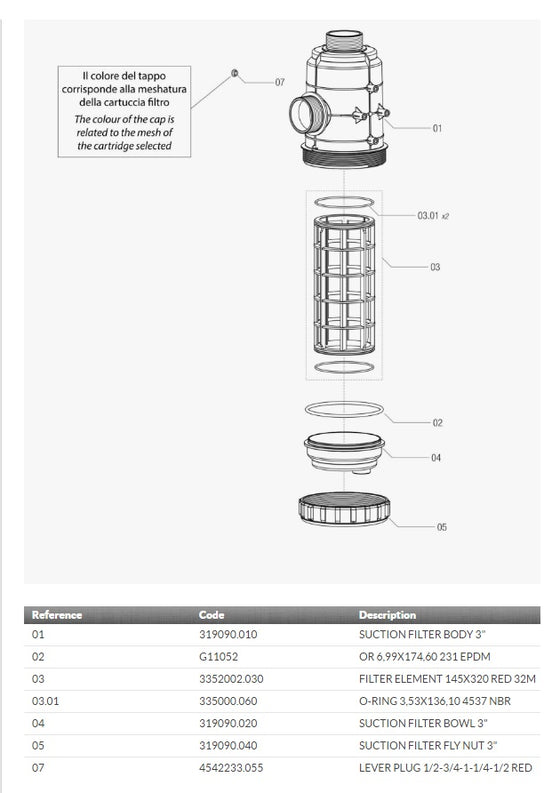

Reference Code Description
01                                      319090.010 SUCTION FILTER BODY 3"
02 G11052 OR 6,99X174,60 231 EPDM
03 3352002.030 FILTER ELEMENT 145X320 RED 32M
03.01 335000.060 O-RING 3,53X136,10 4537 NBR
04 319090.020 SUCTION FILTER BOWL 3"
05 319090.040 SUCTION FILTER FLY NUT 3"
07 4542233.055   LEVER PLUG 1/2-3/4-1-1/4-1/2 RED
