Name: Tank Lids ~ Hinged Tank Lids - Tank Overturning Lid 180° - SPARES
Brand: Arag
Availability: InStock

SALES: sales@spraytrac.com PARTS: parts@spraytrac.com TELEPHONE: 01423 322377

Sprayers

Parts

NSTS

Technology

Arag

Shipping calculated at checkout.

Quantity

Spares

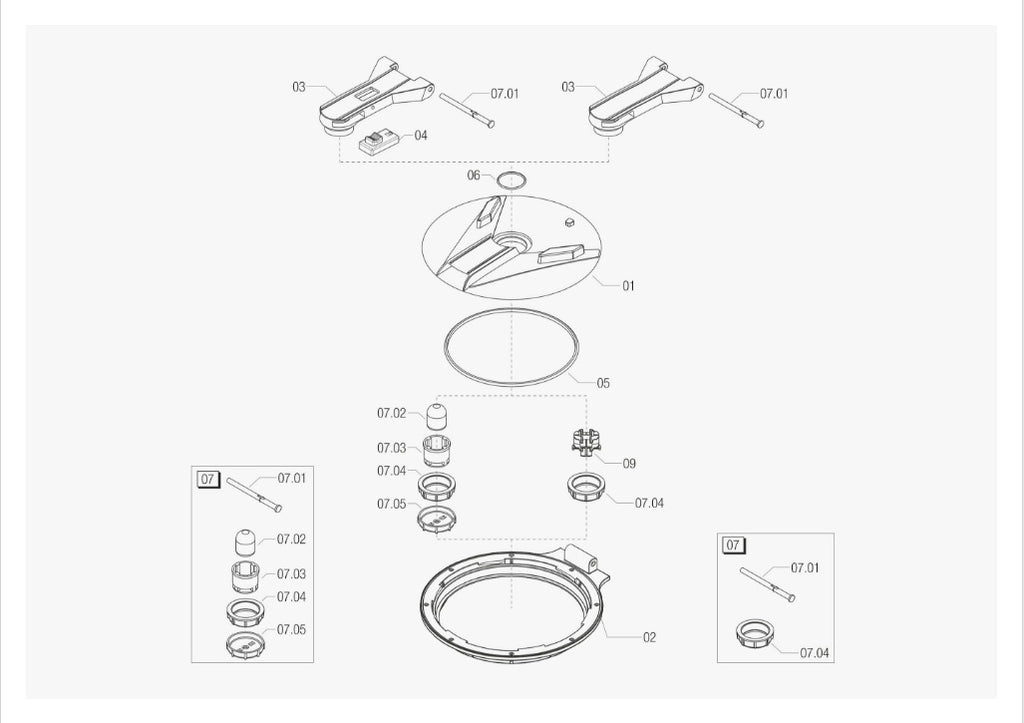

35604* Spares: 572mm

Reference	Code	Description

01	356040.010	HINGED LID BODY D.355
02	356040.020	NECK RING FOR HINGED LID D.355
03	356040.030	ARM FOR HINGED LID D.355
05	3562040.090	SPECIAL GASKET HINGED LID D.355 NBR
07	356060.100	AIR BREATHER KIT
07.01	356060.040	PIN FOR ARM HINGED LID
07.02	356060.080	FLOATING SEAL FOR HINGED LID
07.03	356060.050	AIR VALVE SEAT HINGED LID
07.04	2002070	FLY-NUT 2"
07.05	356060.060	AIR VALVE CAP HINGED LID

35606* Spares 713mm

Reference	Code	Description

01	3562060.010	BODY HINGED LID D.455
02	3562060.020	RING FOR HINGED LID
03	3562060.030	ARM FOR HINGED LID RED D.455
05	3562060.090	SPECIAL GASKET HINGED LID D.455 NBR
07	356060.100	AIR BREATHER KIT
07.01	356060.040	PIN FOR ARM HINGED LID
07.02	356060.080	FLOATING SEAL FOR HINGED LID
07.03	356060.050	AIR VALVE SEAT HINGED LID
07.04	2002070	FLY-NUT 2"
07.05	356060.060	AIR VALVE CAP HINGED LID
