Manual main control valve with adjustable pressure relief valve
Series 471
180L per minute @ 20 bar
GENERAL FEATURES
- Fibreglass-reinforced Nylon body
- Internal parts in Delrin® and AISI 303 stainless steel
- Gaskets made of Viton® * Hose fitting included: IN (25mm); ByPass 30mm;
- Hose fitings diameter available to be ordered depending on the desired flow rate(see Chart):
IN = 19, 25, 30, 32mm, 3/4", 1" and 1" 1/4 ; (type B only 25mm)
ByPass: 25, 30, 32, 35mm and 1" 1/4 ;

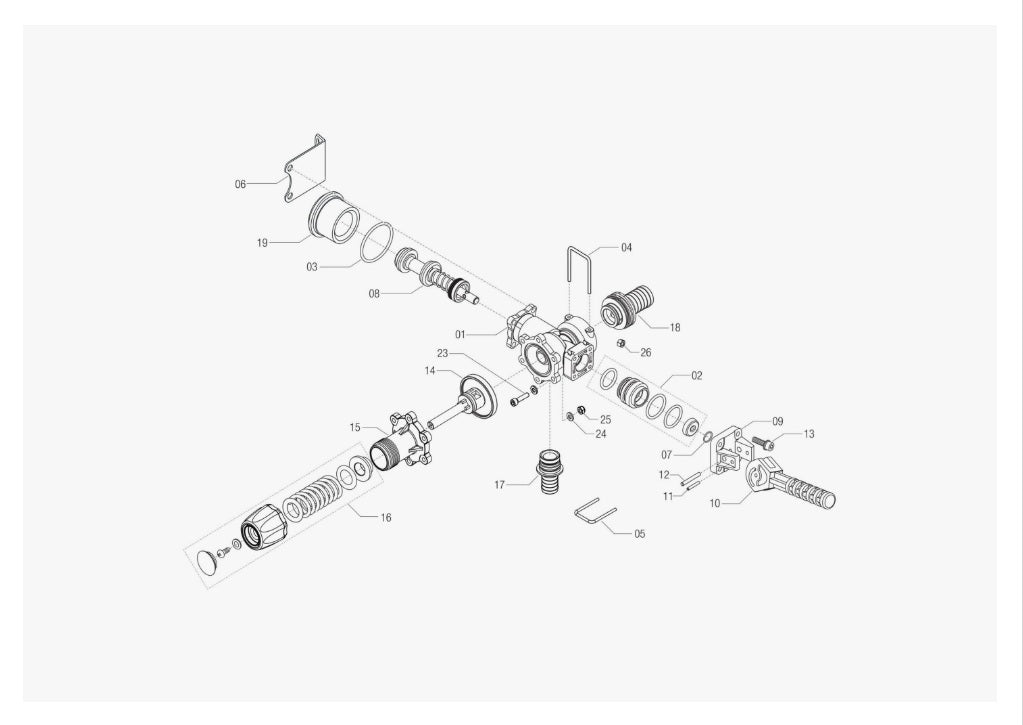

| Reference | Code | Description |
|
1 |
471502.51 | CORPO VALVOLA COMANDO 180L C/BOCCOL |
| 2 | 471200.5 | KIT BOCCOLA DI TENUTA |
| 3 | G10071V | OR 2,62X39,34 VITON |
| 4 | 10005 | FORK D.3 DIST.42 |
| 5 | 10003 | FORK D.3 DIST.29 |
| 6 | 463011.1 | VALVE PLATE FOR VALVES 463 |
| 7 | G11019V | OR 1,78X6,07 VITON |
| 8 | 471202.551 | KIT ASTA COM.GENERALE VALV.MAN. |
| 9 | 461202.02 | BLANK ADAPTOR MANUAL MAIN VALVE |
| 10 | 461202.01 | MANUAL MAIN VALVE LEVER |
| 11 | B4323H | SPINA ELAST.SPIR. 3X20 DIN7343 INOX |
| 12 | 461202.09 | PIN 4X32 * INOX |
| 13 | V1Q13I | SCREW TCEI FL 5X20 ZNB |
| 14 | 471502.18 | PRESS.REG.DIAPHRAM AND BAR KIT 471 |
| 15 | 471502.11 | REGULATION SUPPORT PRESS.VALVE 471 |
| 16 | 471201.501 | KIT POMOLO PRESSIONE NERO 10B |
| 16 | 471202.501 | KIT POMOLO PRESSIONE VERDE 20B |
| 17 | 473001.A25 | HOSETAIL D.25 FOR VALVE 473 + OR |
| 18 | 471202.A41 | HOSETAIL D.30 D.16 471 S.B. + OR |
| 19 | 471202.029 | MALE FLANGE X VALVE HOSE 471/463 |
| 23 | V1C14K | SCREW TCEI M 6 X 25 UNI 5931 |
| 24 | B201F0 | FL. WASHER 6,4X12,5X1,6 ZNB UNI6592 |
| 25 | B12141 | SELF-LOCKING NUT M6 FE-ZN UNI7474 |
| 26 | B10132 | NUT M 5X8X5 ZNB UNI5587 |
