Gasket for hose fittings with OR

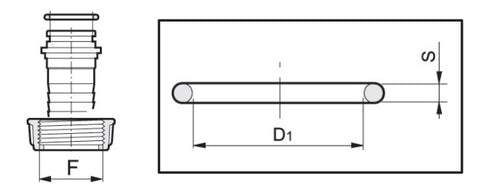

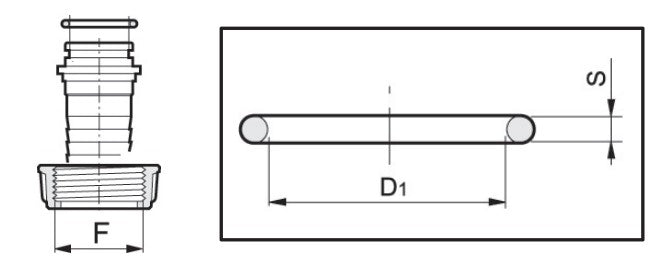

| D1 | F | S | |||
|---|---|---|---|---|---|
| G11057 | 9,1mm | 0.3" | G 3/8" | 2,6mm | 0.1" |
| G11060 | 10,5mm | 0.4" | G 1/2" | 2mm | 0.1" |
| G10031 | 13,1mm | 0.5" | G 3/4" | 2,6mm | 0.1" |
| G10041 | 20,2mm | 0.8" | G 1/2" | 2,6mm | 0.1" |
| G10051 | 26,7mm | 1" | G 1" 1/4 | 2,6mm | 0.1" |
| G10061 | 29,2mm | 1.1" | G 1" 1/2 | 3mm | 0.1" |
| G10071 | 39,3mm | 1.5" | G 2" | 2,6mm | 0.1" |
| G10081 | 56,7mm | 2.2" | G 2" 1/2 | 3,5mm | 0.1" |
| G10091 | 68,3mm | 2.7 | G 3" | 3,5mm | 0.1" |
