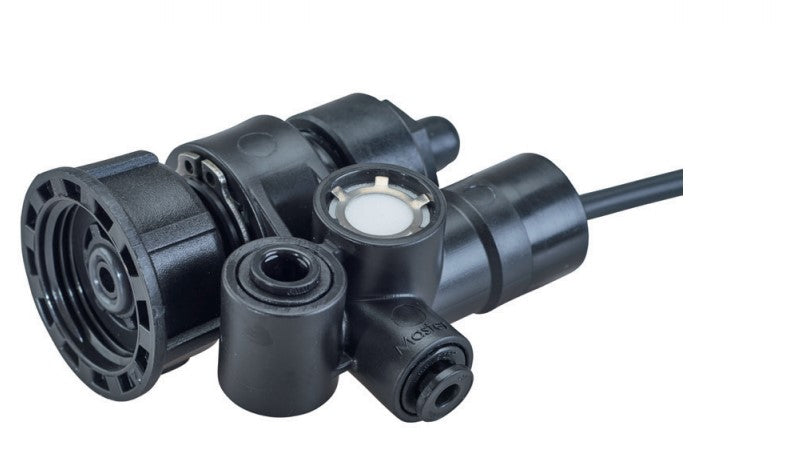

Spray-Stop
Master-Slave section control option capable of operating up to 8 standard Spray-Stops
Specifications
- Control current < 0,06A
- 12 V Voltage
- Pneumatic supply can be positioned through 360° Maximum spray liquid pressure: 12 bar
- Minimum pneumatic pressure: 4,5 bar
- Maximum pneumatic pressure: 6,5 bar
System integration into the field sprayer:
- For modern field sprayers with pneumatic supply and electronical control
- For OEM original fitment and retrofitting (fits all common nozzle bodies) Replaces the standard section valves and hoses
- Only one electrical line per section (Master-Slave version)
- Reduction in residual liquids, recirculation possible by mounting hoses in a ring line
- No additional electro pneumatic valve bank required
- Easy mounting of the pneumatic hoses
- Flexible configuration of the sections easily achieved
Benefits for the end user:
- Nozzle control is operated directly on the spray line
- Fast and safe ON/OFF control reduces chance of over application GPS section / individual nozzle control is possible (additional controllers required)
- Pressure recirculation system possible Instant liquid spray pressure at all nozzles when turning on (circulation system)
- Minimal residual chemicals = less waste, reduced costs and safer environment
