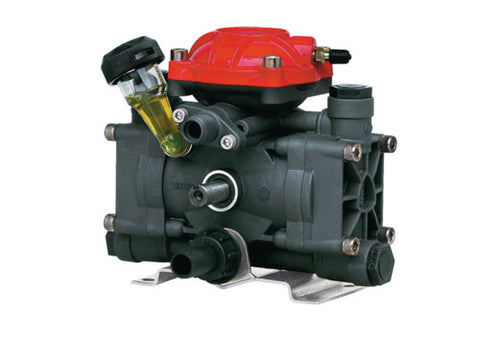

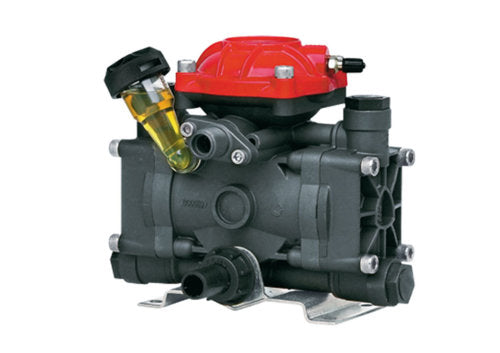

Annovi Reverberi Pump - AR252

Semi-hydraulic two-diaphragm pump, for use in the gardening or semi-professional agricultural sectors. Trolley-mounted in combination with electric motors or internal combustion engines for gardening, and small sprayers for medium-pressure pesticide treatments in gardens, greenhouses, orchards or vineyards. Parts in contact with pumped liquids in anodized aluminium, and AISI 303/304. Diaphragms in NBR. Seals in NBR. Die-cast casing with oil-immersed mechanism and clear plastic tank for visual level checking. Fitted with air-hydraulic damper for smoother operation and less hammer effect in the delivery circuit. Pistons with ring for a more efficient “oil cushion” system to protect the diaphragm. Metal fasteners with galvanised finish. Available with reduction gearboxes for electric motors or internal combustion engines and flanges for hydraulic motors or small cultivating machines.

AR 252 SP SGC cod. 158

https://www.annovireverberi.it/en/agriculture/medium-pressure/medium-pressure-anodized-pumps/ar-252-sp-sgc-cod-158

AR 252 AP SP SGC cod. 159

https://www.annovireverberi.it/en/agriculture/medium-pressure/medium-pressure-anodized-pumps/ar-252-ap-sp-sgc-cod-159

AR 252 SP SGC BlueFlex™ cod. 32093

https://www.annovireverberi.it/en/agriculture/medium-pressure/medium-pressure-anodized-pumps/ar-252-sp-sgc-blueflex-cod-32093

AR 252 AP SP SGC BlueFlex™ cod. 32094

https://www.annovireverberi.it/en/agriculture/medium-pressure/medium-pressure-anodized-pumps/ar-252-ap-sp-sgc-blueflex-cod-32094
