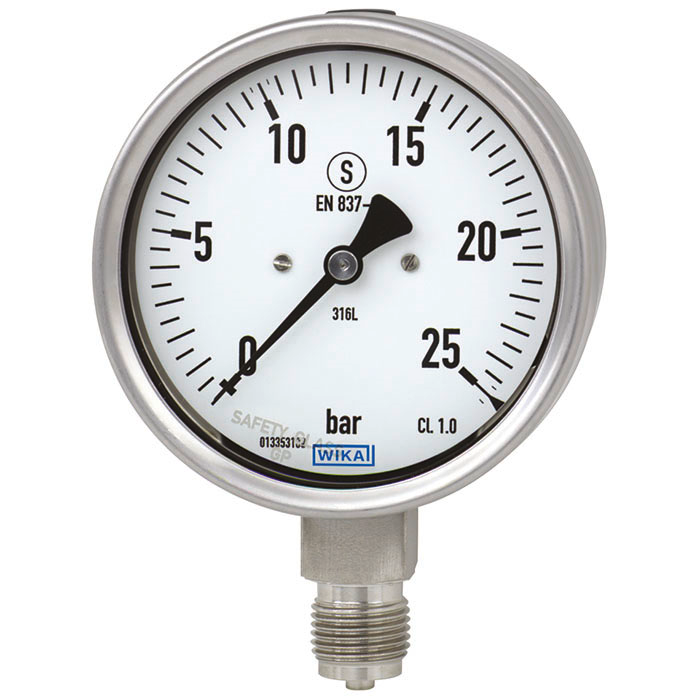

Bourdon tube pressure gauge, stainless steel
For the process industry, safety version, NS 63, 100 and 160
Models 232.30, 233.30
Technical information
| Specifications according to data sheet | PM 02.04 |
| Measuring system | stainless steel |
| Case | stainless steel with solid baffle wall and blowout back |
| Bezel ring | cam ring (bayonet type), stainless steel |
| Accuracy class | NS 63: class 1.6; NS 100/160: class 1.0 |
Standard features |
|
| Unit of outer Scale | bar |
