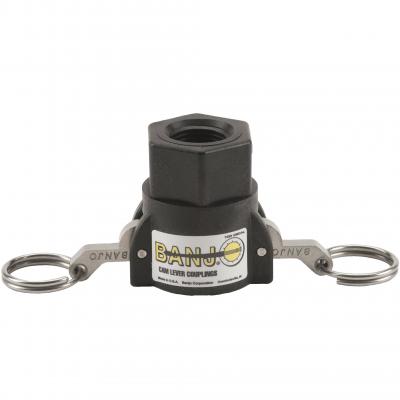

Cam Lever Couplings : Part D - Female Coupler x Female Thread

Part D is used in various Agriculture and Industrial liquid flow applications. Part D is available in traditional glass injected polypropylene, polypropylene FDA Grade, and/or stainless steel materials. Part D is Female Coupler x Female Thread. Also look for Cam Lever Coupling versions that include Locking Arms, 90°, and 45° designs.

POLY CAM LEVER COUPLINGS: Part D - Female Coupler x Female Thread

• BSP threads available 1"- 3" sizes (excluding 1¼").
• Complete series of ½", ¾", 1", 1¼", 1½", 2", 3" and 4" NPT thread.
• Durable — Polypropylene is glass filled for rugged strength and durability.
• Economical and superior in performance.
• Most complete line of polypropylene couplings available.
• Operating conditions: –3/8" thru 2" — 100 P.S.I. at 0°F; 125 P.S.I. at 70°F; 70 P.S.I. at 150°F. –2½", 3" &4" Cap-50 P.S.I.; Couplings 75 P.S.I. max.
• Precision molded — insures a uniform and accurate fit.
• Smooth operating — finger rings are designed for easy opening of cam levers.
• Stainless steel rings, arms & pins.
• Standard with EPDM gaskets. Buna “N”, and FKM (viton type) also available.
• Versatile — interchangeable with all types of cam lever couplers.
• WARNING: Couplings should not be disconnected under pressure or with liquid in the line.
