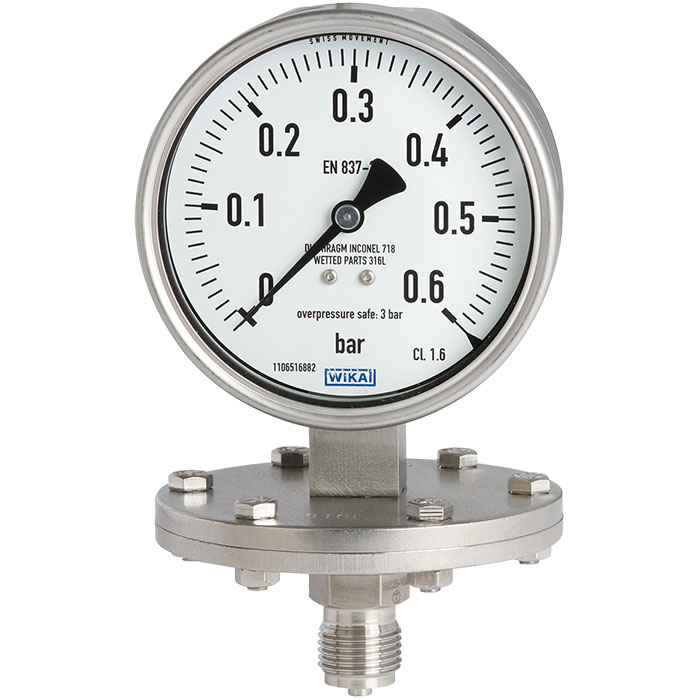

Diaphragm pressure gauge
Models 432.50, 433.50
For the process industry, up to 10-fold overload safety, max. 40 bar
Technical information
| Specifications according to data sheet | PM 04.03 |
| ≤ 0.25 bar: Stainless steel 316L | |
| > 0.25 bar: NiCr alloy (Inconel) | |
| Stainless steel 316L | |
| Sealing of pressure chamber | FPM/FKM |
| Case | stainless steel |
| Bezel ring | stainless steel |
| Movement | stainless steel |
| Window | laminated safety glass |
| Accuracy class | class 1.6 |
Standard features |
|
| Measuring system | stainless steel |
| Case | with pressure blowout disk |
| Process connection | G 1/2 B |
Applications of the diaphragm pressure gauge
- For measuring points with increased overload
- With liquid-filled case suitability for high dynamic pressure loads and vibrations (model 433.50)
- For gaseous, liquid and aggressive media, also in aggressive environments
- With the open connecting flange option also for contaminated and viscous media
- Process industry: Chemical, petrochemical, power plants, mining, on-/offshore, environmental technology, machine building and general plant construction
Special Features of the diaphragm pressure gauge
- Case and wetted parts from stainless steel
- Wide choice of special materials
- High overload safety up to the 10-fold full scale value
- Process connection thread or open flange

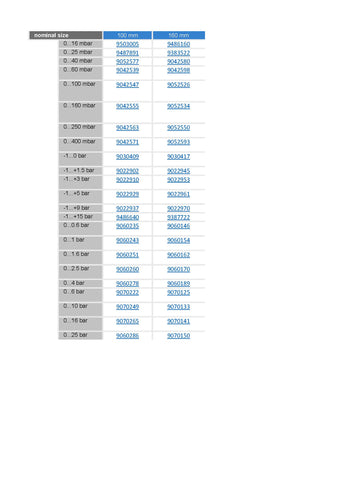

- Scale ranges from 0 … 16 mbar
