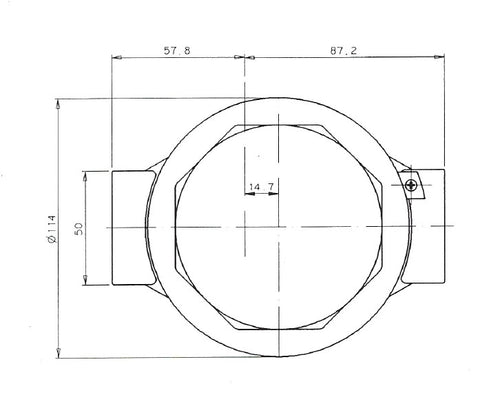

Electric Ball Valve - 2 Way (1/2" and 3/4") - (Options on voltages available)
SPARE PARTS:
| ITEM | NO | DESCRIPTION | MATERIAL | REFERENCE |
| 1 | 1 | 1/2" ADJUSTING END | GRPP | 2008-00D |
| 3/4" ADJUSTING END | GRPP | 2008-01D | ||
| 2 | 1 | 1/2" 2W FEM THREADED BODY | GRPP | 2011-00A |
| 3/4" 2W FEM THREADED BODY | GRPP | 2011-01A | ||
| 3/4" 2W MAL THREADED BODY | GRPP | 2011-01B | ||
| 1/2" FEM THREADED BODY | GRPP | 2011-10A | ||
| 3/4" 3W FEM THREADED BODY | GRPP | 2011-11A | ||
| 3/4" 3W MAL THREADED BODY | GRPP | 2011-11B | ||
| BTD BODY | GRPP | 2011-11C | ||
| 3 | 2 | SEAT O'RING OR 25 X 2.5 | EP | 1000-91E |
| VT | 1000-91V | |||
| 4 | 1 | ADJUSTING END O'RING OR 32.2 X 3 | EP | 1000-87E |
| VT | 1000-87V | |||
| 5 | 1 | 2 WAY BALL PLUG | PP | 10003-01C |
| 3 WAY BALL PLUG | PP | 2003-01C | ||
| 6 | 2 | SEAT | PTFE | 1003-01S |
| 7 | 1 | SPINDLE | GRPP | 2011-01C |
| 8 | 2 | SPINDLE O'RING R14 | EP | 1000-14E |
| VT | 1000-14V | |||
| 9 | 1 | COVER O'RING OR 105 X 2 | EP | 1000-88E |
| 10 | 1 | COVER SCREW TCL DIAMETER 2.9 X 6.4 | SS 304 | 2006-05R |
| 11 | 1 | MOTOR GEARBOX | CAST ALU | 2013-03L |
| 12 | 1 | SCREW TCL DIAMETER 05 X 50 | SS 304 | 2006-5U |
| 13 | 2 | DIODE | 2006-09Y | |
| 14 | 1 | TIE | RILSON | 2006-09E |
| 15 | 1 | TERMINAL BLACK | PE | 2006-09G |
| 16 | 1 | COVER | PE | 1003-39X |
| 17 | 2 | MICROSWITCH SCREW DIA 02 X 16 | PLATED | 2006-05M |
| 18 | 2 | M2 WASHER | PLATED | 2006-02P |
| 19 | 2 | 2 WAY CAM | CAST ALU | 1003-39U |
| 3 WAY CAM | CAST ALU | 1003-39V | ||
| 20 | 4 | M4 X 5 GRUB SCREW | STEEL | 2006-05L |
| 21 | 2 | MICROSWITCH | NYLON | 1003-39M |
| 22 | 2 | GEARBOX SCREW TCL DIA O5 X 16 | SS 304 | 2006-05T |
| 23 | 3 | AZ 5 STAR WASHER | SS 304 | 2006-02E |
| 24 | 1 | ADJUSTING END SCREW TF 2.9 X 12.7 | FIBER | 2006-05V |
| 25 | 1 | PTFE WASHER | PTFE | 2011-01D |

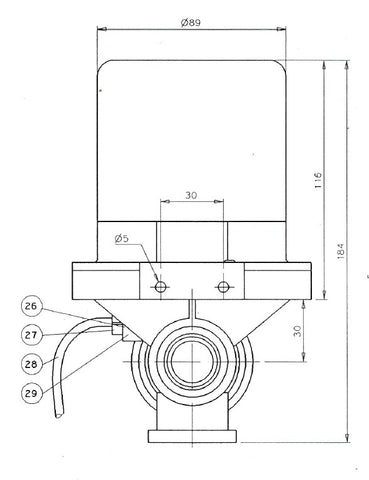

| 26 | 1 | CABLE GLAND WASHER | FIBER | 2011-01F |
| 27 | 1 | CABLE GLAND SCREW | GRPP | 2011-01E |
| 28 | 1 | CABLE 3 CORE 0.5 mm2 LENGTH 2m | PVC | 2006-09D |
| 29 | 1 | CABLE GLAND SET | EP | 2011-01G |
BREAKDOWN:
FITTINGS: Pleased select: 2 letters for 2 way from:
A For 1 BSP threaded socketB For 1 DIN PVC plain socket for solvent weld
C For 1 DIN PP plain socket for fusion weld
D For 1 hose tail
J For 1 BSP threaded stub
L For BS PVC plain socket for solvent weld
M For BS PP plain socket for fusion weld
SEALS: Complete the valve reference with the following
E For EP o'ring (standard)
V For VITON o'ring
EXAMPLE:
