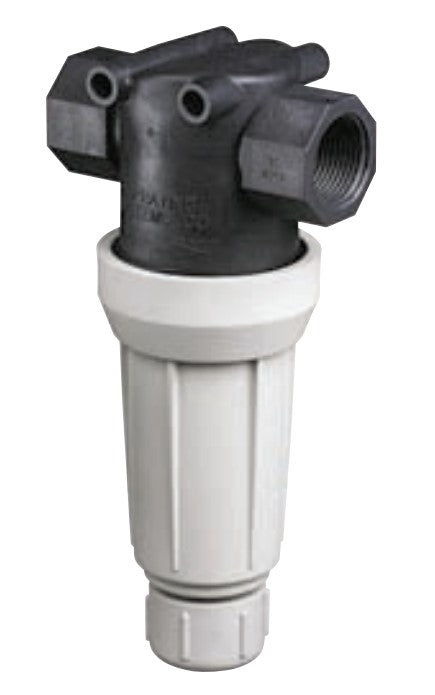

AA126 Flush-out Line Strainer Features:
■ 200 PSI (14 bar) maximum pressure rating.■ Strainer head and bowl are made of glass-filled polypropylene with EPDM gasket.

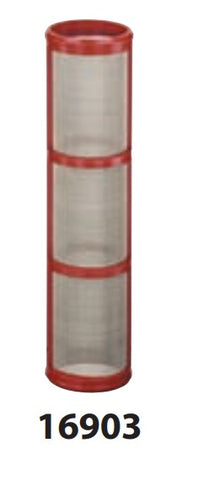

■ Screens are made of 304SS with color-coded polypropylene frames and are removable for cleaning.
■ Removable cap and O-ring for flush-out or self-cleaning operations.
■ Integral mounting provision allows the strainer to be attached to machine using M8 or 5⁄16 diameter bolts.
■ Available with ¾, 1 NPT or BSPT (F) threads and 50 series flange fitting connections for easy assembly. For information on flange fittings see pages 102 and 103.
■ Uses same screen as the AA124A line strainer.
