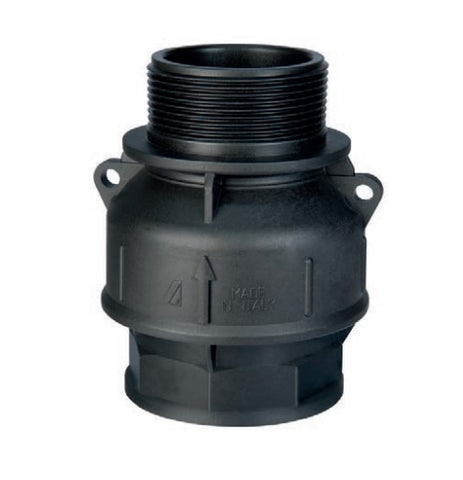

Foot Valve ~ Foot valve with Male Threaded Couplings
TECHNICAL FEATURES
- Glass fiber reinforced polypropylene body
- Acetalyc resin plug
- Stainless steel spring
- EPDM seals
- Minimum opening pressure 0.02 bar (0.3 PSI)
- Glass fiber reinforced polypropylene body
- Acetalyc resin plug
- Stainless steel spring
- EPDM seals
- Minimum opening pressure 0.02 bar

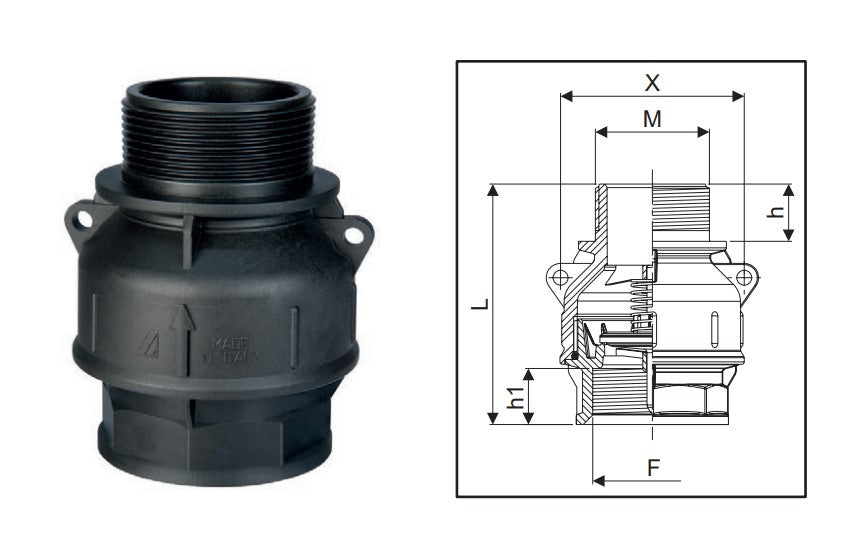

| CODE | F | M | L | Pressure | X | h | h1 | |
|---|---|---|---|---|---|---|---|---|
| 5042007 | G 2" | G 2" | 116mm | 5bar | 87mm | 27mm | 28mm |
