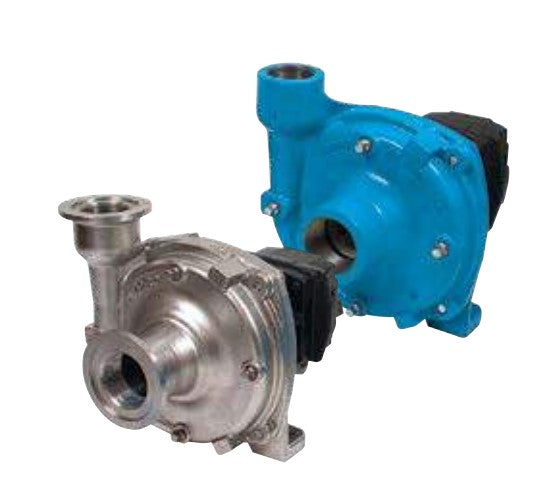

HYDRAULICALLY-DRIVEN, CAST IRON AND STAINLESS STEEL

Series 9303C and 9303S

FEATURES

  • Hydraulic motor drive (for open center, closed center and load-sensing systems)
  • Port sizes: 1-1/2" NPT inlet, 1-1/4" NPT outlet
  • 220 x 200 universal flange available (U)
  • Max. fluid temperature: 140°F/60°C
  • Impeller: Cast Iron models – Nylon; Stainless Steel models – Polypropylene
  • Motor: internal gear gerotor
  • Hydraulic ports: 1/2" NPT inlet, 3/4" NPT outlet-HM Series
  • Hydraulic ports on GM1 Series: 3/4" 16 UNF #8 SAE
  • Pump seals: Cast Iron models – Viton® /ceramic standard; Life Guard silicon carbide (B) available; Stainless Steel models (Life Guard silicon carbide standard)
  • Life Guard seals are the industry standard on OEM equipment
  • Hydraulic motor seal: double-lip Teflon®
  • Max. motor psi: 3000 (bar: 207)
  • Weight: 26 lbs./11.8 kg

ORDER INFORMATION


9303C-HM1C, 9303S-HM1C

9303C-HM2C, 9303S-HM2C

9303C-HM3C, 9303S-HM3C

    9303C-HM4C, 9303S-HM4C

    9303C-HM5C, 9303S-HM5C

    UPGRADE OPTIONS

    • Increase abrasive resistance with Life Guard Seals
      • Life Guard seals are the OEM standard
    • Extend pump life with Stainless Steel
      • Fact: Chemical corrosion, pump cavitation, and abrasive wear are key factors in pump life
      • 316 Stainless Steel pumps provide superior chemical corrosion resistance, while maintaining material strength to prolong the life against abrasive wear
      • 316 Stainless Steel resists cavitation pitting of pumps, extending the wear life
      • Drop in replacements for cast iron pumps
