Hydraulically-Driven, Cast Iron & Stainless Steel - Series 9306C and 9306S

  • Sale

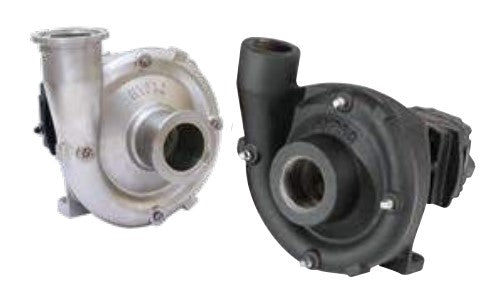

HYDRAULICALLY-DRIVEN, CAST IRON & STAINLESS STEEL

Series 9306C and 9306S

FEATURES

  • Hydraulic motor drive (for open center, closed center and load-sensing systems)
  • Port sizes: 2" NPT inlet, 1-1/2" NPT outlet; 220 x 220 (U) Universal flange available
  • Max. fluid temperature: 140°F/60°C
  • Available in cast iron and 316 stainless steel for extended pump life
  • Impeller: Nylon (cast iron models); polypropylene (stainless steel models); (GTX available)
  • Motor: internal gear gerotor
  • Hydraulic ports: 1/2" NPT inlet, 3/4" NPT outlet
  • Max. motor psi: 3000 (bar: 207)
  • Pump seals: Cast Iron models – Viton® /ceramic standard; Life Guard silicon carbide (B) available; Stainless Steel models – Life Guard silicon carbide standard ‹ Life Guard seals are the industry standard on OEM equipment
  • Hydraulic motor seal: double-lip Teflon®
  • Weight: 33 lbs./15 kg

    ORDER INFORMATION

    *Universal Flange (220 x 220) - Add Suffix “U” (i.e.: 9306C-HM3C-U) - Life Guard silicon carbide seal - Add suffix “B” (i.e.: 9306C-HM3C-B)

      9306C-HM1C, 9306S-HM1C, 9306C-HM1C-U, 9306S-HM1C-U

      9306C-HM3C, 9306S-HM3C, 9306C-HM3C-U, 9306S-HM3C-U

      9306C-HM5C, 9306S-HM5C, 9306C-HM5C-U, 9306S-HM5C-U

      UPGRADE OPTIONS

      • Increase dry-run and abrasive resistance with Life Guard Seals
        • Life Guard seals are the OEM standard
      • Extend pump life with Stainless Steel
        • Fact: Chemical corrosion, pump cavitation, and abrasive wear are key factors in pump life
        • 316 Stainless Steel pumps provide superior chemical corrosion resistance, while maintaining material strength to prolong the life against abrasive wear
        • 316 Stainless Steel resists cavitation pitting of pumps, extending the wear life
        • Drop in replacements for cast iron pumps
