Orion 2 - Electro-magnetic

  • Sale

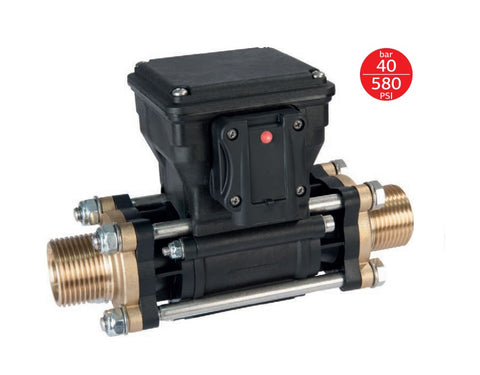

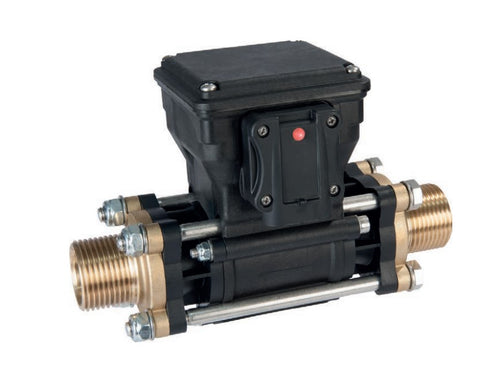

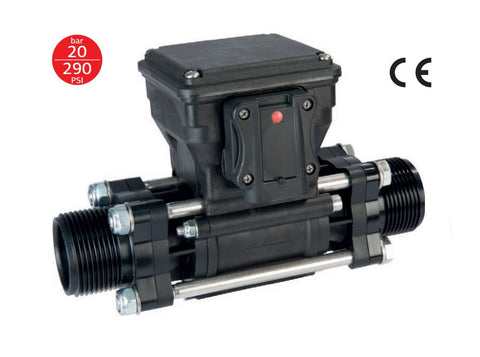

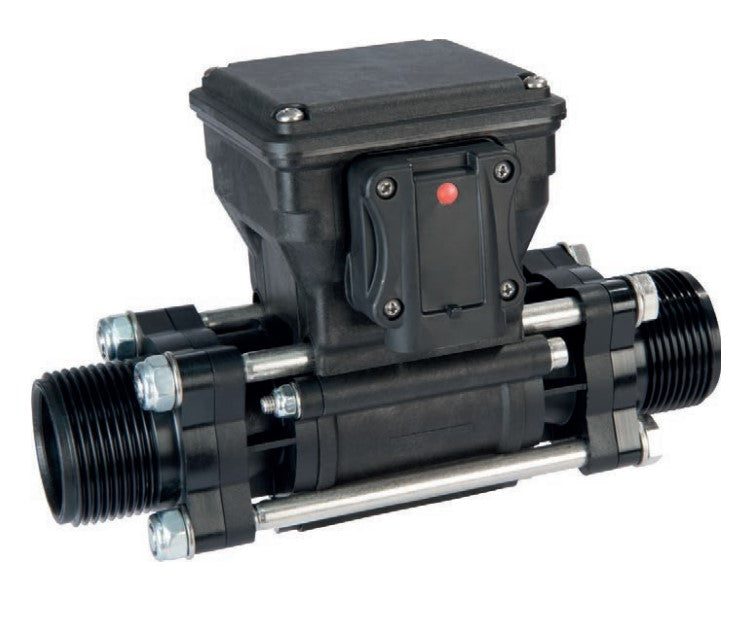

D Series Flow Meters

Advantages

• No mechanical moving parts inside the pipe
• Performances independent from fluid density and viscosity
• Low sensitivity to turbulence
• High precision
• Low maintenance

Characteristics


• Typical error: 0,5% full scale
• Working pressure: up to 40 bar
• Power supply: 11 to 15 Vdc
• 0-12 Vdc pulse output with frequency proportional to rate
• Max consumption: 300 mA
• Output only by flowing fluid
• Available with threaded or flanged fittings
• Threaded fittings in fibre glass reinforced Nylon (20 bar) or brass (40 bar)
• Parts in contact with fluid made of polypropylene and Stainless Steel 316
