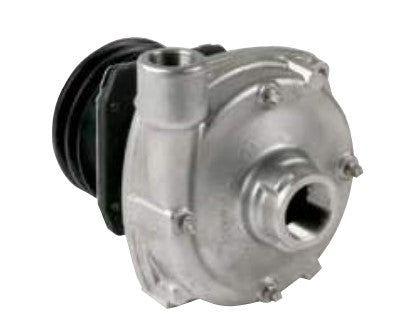

Pedestal Mount Clutch Driven - Series 9262C-C and 9262S-C

Shipping calculated at checkout.
MODEL NO.

Don't forget these...

PEDESTAL MOUNT, CLUTCH-DRIVEN, CAST IRON & STAINLESS STEEL

Series 9262C-C and 9262S-C

FEATURES

  • Pedestal mount with DC clutch drive
  • Double “A” groove pulley (5”/125 mm diameter)
  • Port sizes: 1-1/4" NPT inlet, 1” NPT outlet ‹ Max. fluid temperature: 140°F/60°C
  • Available in cast iron and 316 stainless steel for extended pump life
  • Impeller: Nylon (standard in cast iron); polypropylene (standard in stainless steel); GTX available
  • Pump shaft rotation: Counter clockwise when looking at the shaft end; Clockwise for -CR models
  • Pump seals: Cast Iron models – Viton® /ceramic standard;
  • Life Guard silicon carbide (B) available; Stainless Steel models ( Life Guard silicon carbide standard)
    • Life Guard seals are the industry standard on OEM equipment
  • 3.75 Amp draw (45 watts at 12 volts)
  • Weight: 23 lbs./10.5 kg

ORDER INFORMATION


9262C-C

9262S-C, 9262S-CR

    UPGRADE OPTIONS

    • Increase abrasive resistance with Life Guard Seals
      • Life Guard seals are the OEM standard
    • Extend pump life with Stainless Steel
    • Fact: Chemical corrosion, pump cavitation, and abrasive wear are key factors in pump life
      • 316 Stainless Steel pumps provide superior chemical corrosion resistance, while maintaining material strength to prolong the life against abrasive wear
      • 316 Stainless Steel resists cavitation pitting of pumps, extending the wear life
      • Drop in replacements for cast iron pumps
