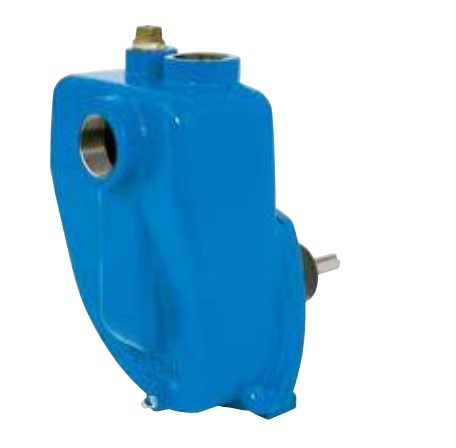

Pedestal Mount Series 9203C-SP and 9203S-SP Self Priming

  • Sale



PEDESTAL MOUNT, CAST IRON & STAINLESS STEEL SELF PRIMING

9203C-SP and 9203S-SP

FEATURES

  • Available in cast iron and 316 stainless steel for extended pump life
  • Pedestal mount, direct drive
  • Port sizes: 1-1/2" NPT inlet, 1-1/4" NPT outlet (9203C-SP, 9203S-SP); 2" NPT inlet, 2" NPT outlet (9203C-R-SP)
  • Max. fluid temperature: 140°F/60°C
  • Impeller: Nylon (cast iron standard); polypropylene (stainless steel); GTX available
  • Pump shaft rotation: Counter clockwise when looking at the shaft end; 9203C-R-SP is clockwise
  • Pump seals: Cast Iron models – Viton® /ceramic standard; Life Guard silicon carbide (B) available; Stainless Steel models – Life Guard silicon carbide standard
  • Life Guard seals are the industry standard on OEM equipment
  • Weight: 31.7 lbs./14.4 kg – Stainless Steel; 29 lbs./13.2 kg - Cast Iron

ORDER INFORMATION

9203C-R-SP

9203C-SP, 9203S-SP

UPGRADE OPTIONS

  • Increase dry-run and abrasive resistance with Life Guard Seals
    • Life Guard seals are the OEM standard
  • Extend pump life with Stainless Steel
    • Fact: Chemical corrosion, pump cavitation, and abrasive wear are key factors in pump life
    • 316 Stainless Steel pumps provide superior chemical corrosion resistance, while maintaining material strength to prolong the life against abrasive wear
    • 316 Stainless Steel resists cavitation pitting of pumps, extending the wear life
    • Drop in replacements for cast iron pumps
