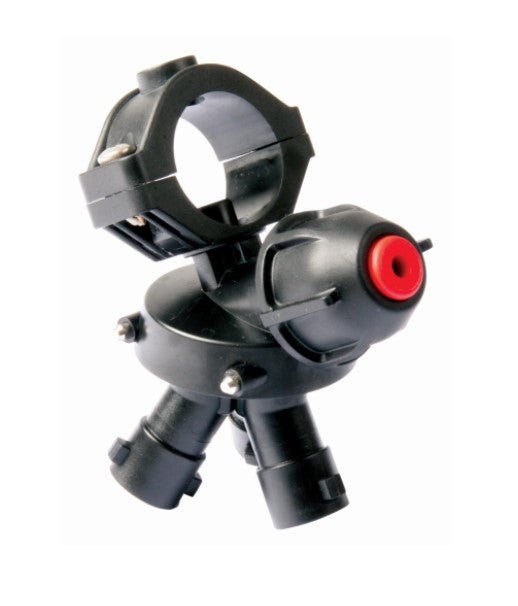

Triple Nozzle Bodies for Wet Booms

  • Sale



PROFLO NOZZLE BODIES

BENEFITS:

  • Designed to deliver the highest flow rates across the spraying pressure range
    • Unique DCV (diaphragm check valve) design reduces restrictions in the flow path, enabling 2.6 gpm (9.8 lpm) with a 5 psi (0.34 bar) pressure drop through the nozzle
    • Supports faster field speeds with the same coverage and supports direct fertilizer application through the nozzle body DCV flow path
  • Turret-indexing design provides improved consistency and reliability throughout the life of the nozzle body
  • –eliminating free spinning and seizing problems seen on competitive nozzle bodies
  • Bayonet style attachment allows for automatic spray alignment using flat fan spray nozzles
  • Compact design makes mounting easier with less potential interference with the spray boom structure
  • ProFlo nozzle bodies come standard with an 8 psi (.55 bar) diaphragm check valve. 4 psi (.27 bar), 12 psi (.82 bar), 20 psi (1.37 bar), and 25 psi (1.72 bar) checks are available as options
  • Maximum working pressures for all nozzle bodies

FEAUTURES

  • Three turret styles for an easy change of spray nozzles: single, 3-way, and 5-way
  • Provides lowest pressure drop at any given flow in the industry
  • 2.6 gpm (9.84 LPM) with a 5 psi (.345 BAR) pressure drop
  • Available in wet or dry boom versions
  • Positive shutoff between each spray position
