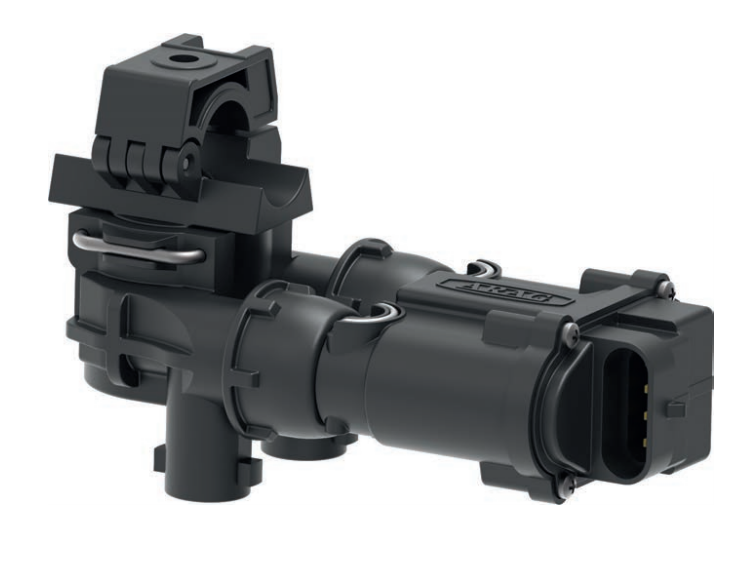

Twin hinged clamp-type crop spraying nozzle holders, equipped with SELETRON valve

  • Sale



Twin hinged clamp-type crop spraying nozzle holders, equipped with SELETRON valve

  • SELETRON allows you to divide the boom in as many sections as the number of nozzles thereby minimizing any overlap and reducing running costs and impact on the environment (Buffer Zone).
  • SELETRON multiple nozzle holders (twin and fourfold ones) allow you to automatically select the nozzle (or the nozzle set) according to the speed and required instant spray rate (Variable Application).
  • Reduced current absorption limited to the time the electronic valve is activated.
  • One single cable for power and command transmission to up to 104 actuators.
  • Easy to install, compact size and weight allow retrofitting to upgrade existing machines.
  • Installing the valve next to the nozzle ensures the continuous fluid flow inside the boom, with the following advantages:
  • lower dead volume (non dilutable residual).
  • lower external contamination during boom flushing.
  • uniform concentration of chemical along the boom, at the beginning of every new spraying job.
  • Flow rate 3.5 l/min (0.92 GPM) @ 0.35 bar (5 PSI)
  • Flow rate 4 l/min (1.06 GPM) @ 0.5 bar (7 PSI)
  • Opening / closing time 0.4 sec.

    Spare Parts Breakdown
