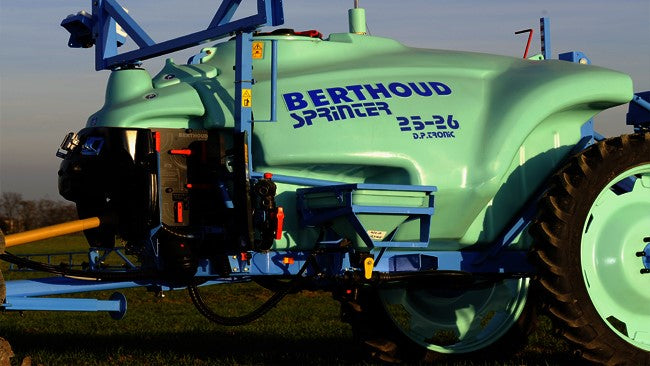

Sprinter

Berthoud, Trailed, Trailer -

Sprinter

STANDARD FEATURES
BASIC SPRAYERS
ALS 18
3 sections
4 sections 4 sections 4 sections
ALS 21
■ Chassis :
- Chassis protected by U.H.R. polyester paint
- Adjustable wheel track 1,5 - 2m with wheels
230/95 R44, standard delivery wheel track 1,80m.
- Boom lift with parallelogramm and suspension with
nitrogen shock absorbers.
- Hydraulic brakes.
- Parking brake.
- French road registration.
■ Hitch - Drive :
- Adjustable jack stand with crank.
- Eye-type hitch.
- Wide angle simple PTO shaft drive (6 splines).
- Wheels 230/95 R44
■ Tanks :
- High-density polyethylene tank with large fill opening.
- Rinse tank 260 litres.
- Hand wash tank 15 litres.
- Floating level gauge with graduated scale.
■ Pump :
- 3 Piston pump GAMA 130 (20 bar, 130 l/mn).
■ Regulation :
- Autoregleur : DPM Regulation with manual regulation
valve for constant volume / hectare.
- DP TRONIC : Electronic regulation with pressure
sensor and stored memory (DPAE).
■ Agitation-Filtration-Filling :
- Filtration : Filling filter (strainer, 8/10).
Suction filter (vannofilter, 6/10).
Pressure filter (1/4 turn filter, 4/10).
- Agitation by hydromax.
- Direct filling with the pump
■ Operation :
- BERLOGIC : Display of valve positions for the various
functions.
- Retractable chemical funnel.
■ Controls :
AUTOREGLEUR (DPM) :
- Manual regulation valve (on the sprayer)
for constant vol/Ha (DPM).
- Electric boom section flap valves with calibrated returns
and main spray shut-off.
- Electric control of boom functions (depending on
version).
DP TRONIC (DPAE) :
- Electronic regulation with stored memory (DPAE).
- Only one control box with multi-pin connection with :
- Electric control of boom sections with electric flap valves
(V.E.C) and main shut-off.
- Electric control of boom functions (depending on
version).
■ Nozzles :
- 2 sets nozzles Category 1.
